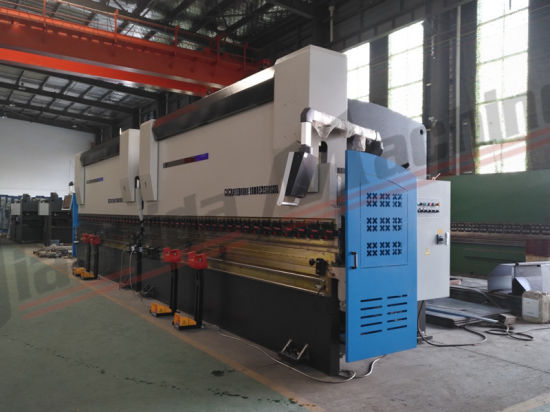

MB8 2X500t5000mm CNC Light Pole Plate Folding Machine for Tandem Press Brake
| MB8 Series CNC Press Brake Machine Features: |
| 1.Brand-new industry design combined with modern aesthetic concept, high-quality production technology, simple appearance. |
| 2.Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate. |
| 3.Heat treatment of the rack, rigidity optimization verification on entire machine and the application of hydraulic compensation structure jointly ensure the bending precision of MB8 series PRESS BRAKES. |
| 4.Optimal ratio of parameters and top-level core configuration ensure stable performance and easy operation. |
| 5.MB8 standard 2 shafts back gauge system, as to complex shape work pieces, 4 or 5 shafts back gauge system and corresponding dies are available for your option. |
| 6.Press brake using fully closed-loop electro-hydraulic servo control technology, slider position signals can be feedback to CNC system by bilateral gratings, then CNC system adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider Y1, Y2 running on the same frequency, maintaining the parallel state of the worktable. |
| 7.According to state of sheet metal on the press brake, CNC system can automatically control the table deflection compensation yielding uniform length of all workpieces angles. |
| 8.The use of hydraulic deflection compensation gives access to uniform full length workpieces. Hydraulic deflection compensation consists of a set of oil cylinders under the worktable, which can make the table occurs relative movement and form an ideal convex curve, ensuring the relative positions with slider keep unchanged. Compensation valves are subject to plate thickness and properties of material to be bent. |
| Backguage |
| X and R axis |
| Taiwan HIWIN Ball Screw and Linear Guide to guarantee the precision |
| Servo Motor controlled |
| Hydraulic Crowning/Compensation |
| The machine adopts the "sandwich" structure, the support plate is in front and back, and the vertical plate is used in the middle. The compensation cylinder is installed in the vertical plate and the front and back support plate to support the vertical plate in the middle stage. |
| When working, the lower compensation cylinder always has the force acting on the vertical plate of the workbench, which is equal to the force of the main cylinder to the worktable, and produces a curve which always rises upward. It compensates for the deformation of the vertical plate and slider on the workbench. |
| It is composed of several groups of 3D surfaces with different slopes. It makes up for the shortcomings of the traditional hydraulic compensation in compensating the blind area, and the compensation curve is closer to the slide plate deformation curve, thus greatly improving the machining accuracy of the bending machine. |
| Holland DELEM DA58T CNC Control System |
| DA58T represents the latest development level of a complete 2D graphics control solution for an electro-hydraulic bending machine. |
| 2D touch graphic programming |
| 15''High resolution TFT color display |
| Calculation of bending process |
| Disturbance compensation control |
| Control mode of servo and frequency converter |
| USB interface |
| The advanced Y axis control algorithm can control the closed loop valve and control the opening valve. |
| Workpiece Sample |
| The tandem press brake is widely used in many area, like the street light pole project |
| Technical Team |
