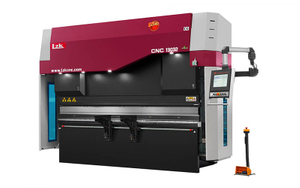

HPB-400T6000
LZK
Rack machining
The bending machine frame is integrally processed by a large floor boring and milling machine.
High precision electro-hydraulic synchronization
The bending precision is higher, anti-offset and more durable.
Upper and lower mold standard segment
The mold segments are 10, 15, 20, 30, 50, 100, 300 (cm), and the length can be customized by the user.
Professional CNC system
The Dutch Delem CNC system is used by default and can be customized.
Electromechanical deflection compensation
In the system, the plate thickness and length parameters are input, and the system will automatically perform deflection compensation.
High precision back gauge structure
It adopts ball screw and linear guide, which is driven by servo motor, and the back gauge is positioned quickly and accurately.
The height of the finger can be adjusted manually
The height of the finger is designed from the overall adjustment, and the height of the finger can be adjusted manually.
Angle programming|graphic programming
The user can program directly at the angle, and each step can achieve a precise bending machine.
LZK | DELEM DA53T CNC system makes complex work easy
Adopt Delem DA53T numerical control system, touch screen fast programming, 8" widescreen color TFT, maximum 4 axis control (Y1.Y2 and two additional axes), table deflection compensation control, mold/material/product library, expandable graphic programming function
LZK | Intelligent hydraulic synchronization system for more efficient work and anti-offset
The Rexroth integrated intelligent hydraulic system simplifies the oil connection, the system is actively synchronized, has high anti-offset capability, and the precision is up to 0.02mm. Hydraulic synchronization minimizes wear during normal operation and lower failure rate.
LZK |Multiple mold options to match various bending workpieces, with higher precision and faster speed
A variety of molds can be selected to adapt to the production of various workpieces, so that the bending angle of the bending machine is more accurate and the working efficiency is higher.
LZK | Electromechanical deflection compensation
It is made of high-strength steel and has a nonlinear wave-slant block structure. It is driven by a motor and can accurately adjust the compensation amount.
LZK | Siemens main motor
Using Siemens main motor
LZK | Reliable electrical system
Open the door and power off, high quality servo motor drive, Schneider Electric components.
LZK | 3+1 axis precision fast back gauge system
The back gauge is welded by steel structure and has high rigidity. It is driven by servo motor, ball screw and linear guide to ensure high precision operation. The height of the beam is adjusted by CNC.
HPB series Sketch Map
| Model | Force | Max. Length | Vertical | Depth | Stroke | Max. Opening | Power | X-travel | X-speed | L*W*H(mm) | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | D | C | E | |||||||
| HPB-63t/2500 | 630Kn | 2500mm | 1960mm | 400mm | 150mm | 480mm | 5.5KW | 500mm | 200mm/s | 2850*1750*2350 | 6Ton |
| HPB-80t/3200 | 800Kn | 2500mm | 2600mm | 400mm | 200mm | 480mm | 7.5KW | 500mm | 200mm/s | 3850*1850*2550 | 7.2Ton |
| HPB-110t/3200 | 1100Kn | 3200mm | 2600mm | 400mm | 200mm | 480mm | 7.5KW | 500mm | 200mm/s | 3850*1850*2600 | 8.0Ton |
| HPB-110t/4000 | 1100Kn | 4000mm | 3200mm | 400mm | 200mm | 480mm | 7.5KW | 500mm | 200mm/s | 4610*1850*2700 | 10.5Ton |
| HPB-130t/3200 | 1300Kn | 3200mm | 2600mm | 400mm | 200mm | 480mm | 11KW | 500mm | 200mm/s | 3850*1850*2600 | 9Ton |
| HPB-130t/4000 | 1300Kn | 4000mm | 3200mm | 400mm | 200mm | 480mm | 11KW | 500mm | 200mm/s | 4610*1850*2700 | 11.5Ton |
| HPB-170t/3200 | 1700Kn | 3200mm | 2600mm | 400mm | 200mm | 480mm | 11KW | 500mm | 200mm/s | 3900*1900*2600 | 10.5Ton |
| HPB-170t/4000 | 1700Kn | 4000mm | 3200mm | 400mm | 200mm | 480mm | 11KW | 500mm | 200mm/s | 4650*1900*2700 | 12.5Ton |
| HPB-200t/3200 | 2000Kn | 3200mm | 2600mm | 400mm | 200mm | 480mm | 15KW | 500mm | 200mm/s | 3900*1900*2700 | 12Ton |
| HPB-200t/4000 | 2000Kn | 4000mm | 3200mm | 400mm | 200mm | 480mm | 15KW | 500mm | 200mm/s | 4700*1900*2700 | 13Ton |
| HPB-250t/3200 | 2500Kn | 3200mm | 2600mm | 400mm | 200mm | 480mm | 15KW | 500mm | 200mm/s | 3900*2100*2800 | 14Ton |
| HPB-250t/4000 | 2500Kn | 4000mm | 3200mm | 400mm | 200mm | 480mm | 15KW | 500mm | 200mm/s | 4650*2100*2850 | 15.5Ton |
| HPB-320t/3200 | 3200Kn | 3200mm | 2600mm | 400mm | 200mm | 480mm | 22KW | 500mm | 200mm/s | 3930*2110*3200 | 19Ton |
| HPB-320t/4000 | 3200Kn | 4000mm | 3200mm | 400mm | 200mm | 480mm | 22KW | 500mm | 200mm/s | 4830*2110*3200 | 22Ton |
| HPB-400t/4000 | 4000Kn | 4000mm | 3200mm | 400mm | 320mm | 600mm | 30KW | 500mm | 200mm/s | 4850*2450*3500 | 28Ton |
| HPB-500t/6000 | 5000Kn | 6000mm | 4900mm | 500mm | 320mm | 600mm | 37KW | 800mm | 200mm/s | 6500*2810*4500 | 42Ton |
| HPB-600t/6000 | 6000Kn | 6000mm | 4900mm | 500mm | 320mm | 600mm | 45KW | 800mm | 200mm/s | 6500*2910*5100 | 50Ton |
| HPB-800t/6000 | 8000Kn | 6000mm | 4720mm | 700mm | 400mm | 600mm | 55KW | 800mm | 200mm/s | 6500*2950*5300 | 75Ton |
Remarks: This parameter is 2019.6.25 day system. If the parameters are not updated in time, please understand.
| Optional model | Manufacturer | Remarks | |
|---|---|---|---|
| CNC system | ●DA-52s ●DA-53T ●DA-58T ●DA-66T ●DA-69T ●ESA S630 ●ESA S640 | Delem ESA | |
| Hydraulic system | ●Open loop ●Closed loop | Rexroth HoerBiger | |
| Back gauge | ●3+1 axis ●4+1 axis ●6+1 axis ●8+1 axis | LZK Burke | Carbon steel Aluminum material |
| Oil pump | ●Sunny oil pump | Sunny | |
| Main power system | ●AC motor ●Servo motor ●Servo pump | Siemens | |
| Front material | ●Simple fixed type ●Single rail movable type ●Double track movable type | LZK | |
| Security | ● Side (guardrail) + rear (guardrail) ● Side (guardrail + light curtain protection) + rear (guardrail) ● Side (guardrail + laser protection) + rear (guardrail) | LZK | |
| Deflection compensation | ●Mechanical electric compensation ●Hydraulic compensation | ||
| Mold clamping | ●Mechanical electric compensation ●Hydraulic compensation... | LZK | |
| electric | ●Schneider Relay | Schneider | Open door power protection |
| Foot switch | ●Korean Kaikun vertical switch | Korean Kaikun | |
| Lower die | ●Multi-V die ●Double V core with lower die | LZK | Double V core module can be segmented |
CNC systems
 |  |  |  |
| Delem DA-52s ● One-page parameter fast programming ● navigation shortcuts ●7” widescreen color TFT ●Maximum 4-axis control (Y1.Y2 and two additional axes) ●Workbench deflection compensation control ●Mold / material / product library ●USB peripheral interface ● Advanced Y-axis control algorithm to control both closed loop and open loop valves ● Panel mounting structure, optional suspension box. | Delem DA-58T ● 2D touch graphic programming ●15” high resolution TFT color display ●Bending process calculation ● deflection compensation control ●Servo and inverter control mode ● Advanced Y-axis control algorithm to control closed-loop valves and open-loop valves ●USB interface | Delem DA-66T ● 2D touch graphic programming ●3D product graphic simulation display ●17” high resolution TFT true color display ●Memory capacity 1 GB ● Complete Windows application package ●Compatible with DELEM modular structure system ●USB, peripheral interface ● Large arc mold ● Support instantaneous shutdown ●Online analysis tools ●PLC programming | ESA S630 ●High-definition 10-inch TFT color touch screen ● Built-in PLC ● 2D graphics programming ●Expanded length calculation ●Graphic upper and lower molds, supporting multilateral molds, telescopic molds, circular arc molds, gooseneck molds, etc. ● Graphic programming automatic, manual optimization ●Support for analog bending ●Support graphic or numerical arc bending ● Support double-click linkage function, no need to purchase synchronization card separately |
