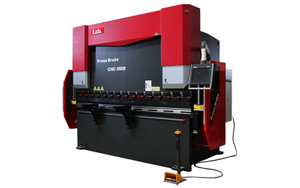

Rack machining
The bending machine frame is integrally processed by a large floor boring and milling machine.
High precision electro-hydraulic synchronization
The bending precision is higher, anti-offset and more durable.
Upper and lower mold standard segment
The mold segments are 10, 15, 20, 30, 50, 100, 300 (cm), and the length can be customized by the user.
Professional CNC system
The Dutch Delem CNC system is used by default and can be customized.
Electromechanical deflection compensation
In the system, the plate thickness and length parameters are input, and the system will automatically perform deflection compensation.
High precision back gauge structure
It adopts ball screw and linear guide, which is driven by servo motor, and the back gauge is positioned quickly and accurately.
The height of the finger can be adjusted manually
The height of the finger is designed from the overall adjustment, and the height of the finger can be adjusted manually.
Angle programming|graphic programming
The user can program directly at the angle, and each step can achieve a precise bending machine.
LZK | DELEM DA53T CNC system makes complex work easy
Adopt Delem DA53T numerical control system, touch screen fast programming, 8″ widescreen color TFT, maximum 4 axis control (Y1.Y2 and two additional axes), table deflection compensation control, mold/material/product library, expandable graphic programming function
LZK |Multiple mold options to match various bending workpieces, with higher precision and faster speed
A variety of molds can be selected to adapt to the production of various workpieces, so that the bending angle of the bending machine is more accurate and the working efficiency is higher.
LZK | Reliable electrical system
Open the door and power off, high quality servo motor drive, Schneider Electric components.
LZK |3 axis precision fast back gauge system
The back gauge is welded by steel structure and has high rigidity. It is driven by servo motor, ball screw and linear guide to ensure high precision operation. The height of the beam is adjusted by CNC.
