Shanghai, China
100 Set/Month
L/C, T/T, D/P, Western Union, Paypal, Money Gram
HPB-80T3200
Press Brake
Delem Da52s
4400mm
4mm
500mm
3200mm
200mm
480mm
400mm
2 Pieces
2 Pieces
Servo Motor
Schneider
Bosch Rexroth
Sunny
One Set with Machine for Free
LZK
40hq
4400x1850x2600
Maanshan, China
8462219000
2 Years
IPX-8
2-year
RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
Automatic
Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
| Features |
| 1. The frame adopts steel structural parts, the left and right vertical plates, the workbench and the pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the overall rigidity is high and the stability is high. |
| 2. The main components such as the machine body and the slider are analyzed by ANSYS finite element analysis software to ensure the reliability of the machine tool. |
| 3. Hydraulic upper transmission, stable and reliable. |
| 4. Bosch Rexroth valve control, high synchronization accuracy. |
| 5. The distance of the back gauge and the stroke of the slider are controlled by the numerical control system, which is convenient and quick. |
| 6. The oil cylinder has been forged, quenched and tempered, finely ground, hard chrome plated and other processes, and are equipped with imported sealing rings to help customer service oil leakage. |
| 7. The hydraulic system adopts oil circuit integrated hydraulic system, which reduces pipeline installation and has a beautiful and simple appearance. |
| Quick clamps |

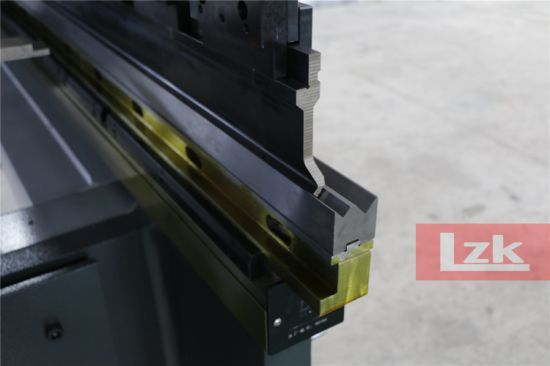

| Punch and die can be customized according to customer product |
| Backgauge finger blocks on double lindar guide rail |
| Back gauge with X, R axes |
| Servo motor controlled |
| CNC Cronwning/compensation |
| KACON footpedal |
| With beam structure |
| Main motor Siemens |
| Fagor grating ruler |
| SNC53 control system: 1. For the backing material (X) of the bending machine, the position of the block in the left and right cylinders (Y1, Y2), the lifting position of the rear block (R), the left and right gears (Z1, Z2), the pressure (P) and the deflection compensation (Hydraulic, mechanical) (V) for automatic positioning control. 2. The parameters can be set to single side and bilateral positioning mode, and the single side positioning mode can effectively eliminate the screw drive gap. 3. The system has a soft limit function. 4. Power-off position memory function. 5. The display scale factor can be set according to the screw pitch and the transmission ratio. The display scale factor can be automatically calculated by the numerical control system through the teaching operation function, and the operation is very simple. 6, single step insert mode, very practical and convenient. 7, multi-step programming function, can achieve multi-step automatic operation. 8. Retreat the escape function to avoid interference between the back gauge device and the workpiece to reduce wear. 9, integrated pump start and switch adjustment, single, continuous function in the system. 10. With password protection. 11, large arc programming function. 12, IO port flexible configuration and valve group configuration function. 13. The raster real-time feedback slider position. |
| Schneider main electrical components |
| Workshop in stock machines |
| Russia customer, Yacht manufacturer, bought three sets of cnc press brake in use |
| Customer visit and inspect for cooperation from different countries |
