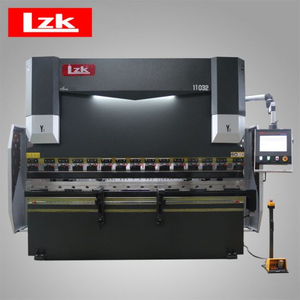

EPB-1050
| Rack machining:The bending machine frame is integrally processed by a large floor boring and milling machine. | Energy saving and power saving The power saving rate is 77.8% | Green and environmental protection There is no need to use and replace hydraulic oil, which ends the pollution of waste hydraulic oil to the environment. | High-precision control double-loop control with 5um resolution grating ruler and high-digit encoder, repeatable Positioning accuracy ±3um |
Processing consistency The influence of oil temperature changes on the consistency of bending workpieces is avoided. | Strong adaptability to ambient temperature Strong adaptability to ambient temperature, working ambient temperature is 0~50ºC; storage ambient temperature is -20~60ºC | Electric back gear finger The electric back gear finger can be adjusted by the quick closing adjustment on the foot switch | Angle programming|graphic programming The user can program directly at the angle, and each step can achieve a precise bending machine.A higher-level system with graphical programming function is also optional |
Adopt SYNTEC control system is mainly used in all-electric servo bending machines. It has powerful functions, rich built-in resources, and has the advantages of safety, high efficiency, energy saving, and environmental protection.
This design achieves the highest speed and accuracy and ensures extremely low operating costs.
A variety of molds can be selected to adapt to the production of various workpieces, so that the bending angle of the bending machine is more accurate and the working efficiency is higher.
Open the door and power off, high quality SYNTEC servo motor drive, Electric components.
Adopt high-precision 2-axis back gauge. Driven by servo motor, ball screw and linear guide to ensure high-precision operation. The beam height is adjusted by CNC.
| Name | Model/Manufacture |
|---|---|
| CNC System | SYNTEC(10T-40T) LZ80T(65T-100T) |
| Y axes servo motor | SYNTEC SNAYO |
| Backgauge servo motor | SYNTEC Fuji,Japan |
| Compensation | Mechanical compensation(Standard equipment for models of 2,500 m m and above) |
| Electrics | France Electrics |
| Pedal Switch | South Korea KACON |
| mold | Standard 202 Frame knife, Double V same core / single V lower mode |
