From payment to delivery, we guarantee your trading security without charges.
EPB-130T3200
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet
Press Brake
Esa S640
Y1, Y2, X, R, Z1, Z2
3200mm
5mm for 3m Sheet
9500kg
600mm Distance, Ball Screw and Linear Guide Rail
Servo Motor
5.7kwx2
Schneider
Bosch-Rexroth
Wila Hydraulic Clamping System
Italy Givi
LZK
20gp
3850× 1850× 2600mm
China
8462219000
3850.00cm * 1850.00cm * 2600.00cm
9500.000kg
Shanghai, China
100 Sets/Month
L/C, T/T, D/P, Western Union, Paypal, Money Gram
| --EPB full servo bending machines are manufactured in accordance with the most stringent quality standards. The Q345E steel frame is annealed at 1200 degrees before being precisely machined and carefully assembled by experienced professionals. --Because of their high speed and high precision, they are widely used in robotic bending cells; EPB works with high-end robot manufacturers such as Kawasaki, Kuka, and Yaskawa to ensure that their machines are well-suited for high-speed robotic bending applications. |
| With ESA S640 control system, can also be replaced with DELEM system, LZ1000 system |
| Main electrical components from Schneider, with double servo motor |
| --The EPB bending machine is equipped with CNC mechanical crowning/compensation |
| --The EPB bending machine is equipped with a fast front-loading quick fixture as standard, which further saves tool change time and improves efficiency. |
| --WILA hydrauilc clamping system |

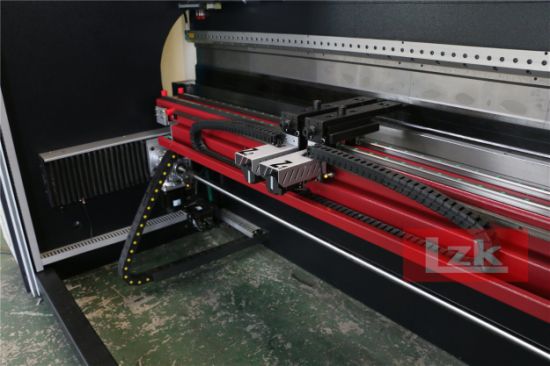

| Back gauge with X, R, Z1, Z2 axes, servo motor controlled |
| --The EPB bending machine works on the principle of dual servos, and the Y1 (left plunger) and Y2 (right plunger) axes are controlled by powerful tuke servo motors. This design can achieve the highest speed and accuracy, and ensure extremely low operating costs. |
| --ITALY GIVI greating ruler |
| --KACON footpedal |
| German Customer |
| Russia Customer, manufacturer of Yacht |
| --EPB full servo bending machines are manufactured in accordance with the most stringent quality standards. The Q345E steel frame is annealed at 1200 degrees before being precisely machined and carefully assembled by experienced professionals. --Because of their high speed and high precision, they are widely used in robotic bending cells; EPB works with high-end robot manufacturers such as Kawasaki, Kuka, and Yaskawa to ensure that their machines are well-suited for high-speed robotic bending applications. |
| With ESA S640 control system, can also be replaced with DELEM system, LZ1000 system |
| Main electrical components from Schneider, with double servo motor |
| --The EPB bending machine is equipped with CNC mechanical crowning/compensation |
| --The EPB bending machine is equipped with a fast front-loading quick fixture as standard, which further saves tool change time and improves efficiency. |
| --WILA hydrauilc clamping system |
| Back gauge with X, R, Z1, Z2 axes, servo motor controlled |
| --The EPB bending machine works on the principle of dual servos, and the Y1 (left plunger) and Y2 (right plunger) axes are controlled by powerful tuke servo motors. This design can achieve the highest speed and accuracy, and ensure extremely low operating costs. |
| --ITALY GIVI greating ruler |
| --KACON footpedal |
| German Customer |
| Russia Customer, manufacturer of Yacht |
