Shanghai, China
100 Sets/Month
L/C, T/T, D/P, Western Union, Paypal

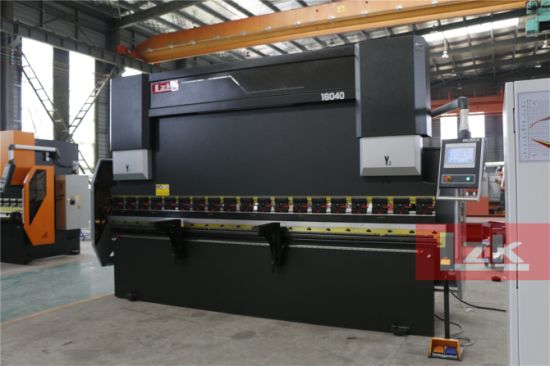

WC67D 160T4000
Press Brake
Snc53
Y1, Y2, X
4000mm
5mm for 4000mm Sheet
3 Pieces
2 Pieces
12 Pieces
Schneider
Taiwan Hiwin&Tbi
Rexroth
LZK
20gp
4500× 1900× 2650mm
China
8462219000
IPX-8
2-year
New
RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
Semi-Automatic
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Steel
| The frame is made of steel structure, left and right vertical plate, worktable and pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the whole steel is good and the stability is high. |
| Latest high-frequency responding hydraulic control technology, faster, more efficient and accurate. |
| SNC53 Features and Functions |
| 1. For the backing material (X) of the bending machine, the position of the block in the left and right cylinders (Y1, Y2), the lifting position of the rear block (R), the left and right gears (Z1, Z2), the pressure (P) and the deflection compensation (Hydraulic, mechanical) (V) for automatic positioning control. |
| 2. The parameters can be set to single side and bilateral positioning mode, and the single side positioning mode can effectively eliminate the screw drive gap. |
| 3. The system has a soft limit function. |
| 4. Power-off position memory function. |
| 5. The display scale factor can be set according to the screw pitch and the transmission ratio. The display scale factor can be automatically calculated by the numerical control system through the teaching operation function, and the operation is very simple. |
| 6. Single step insert mode, very practical and convenient. |
| 7. Multi-step programming function, can achieve multi-step automatic operation. |
| 8. Retreat the escape function to avoid interference between the back gauge device and the workpiece to reduce wear. |
| 9. Integrated pump start and switch adjustment, single, continuous function in the system. |
| 10. With password protection. |
| 11. Large arc programming function. |
| 12. IO port flexible configuration and valve group configuration function. |
| 13. The raster real-time feedback slider position. |
| Backgauge |
| Taiwan famous brand ball screw and linear guide rail |
| Height adjustable fingers stops |
| Main Schneider electrical components |
| South Korea KACON footpedal |
| Sliding front support arms |
| Quick clamps |

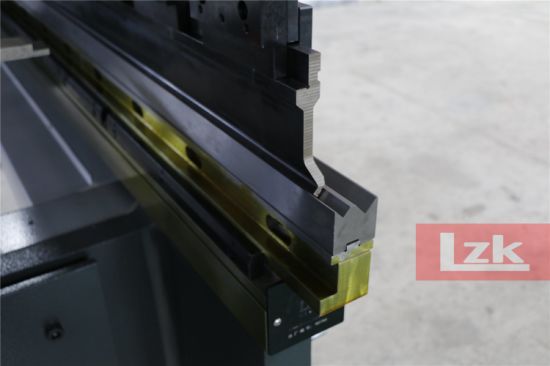

| One set of tool with machine, it can be designed according to customer's product |
| Siemens main motor |
| Grating ruler |
| Y1Y2 oil cylinder mechanical stop and servo control can be adjusted separately, which solves the problem of inconsistent left and right angles of traditional torsion axis machine tools and manual climbing up and down. Twisted shaft synchronization, high precision. |
| Machine Loading |
| Russia Customer, manufacturer of Yacht |
